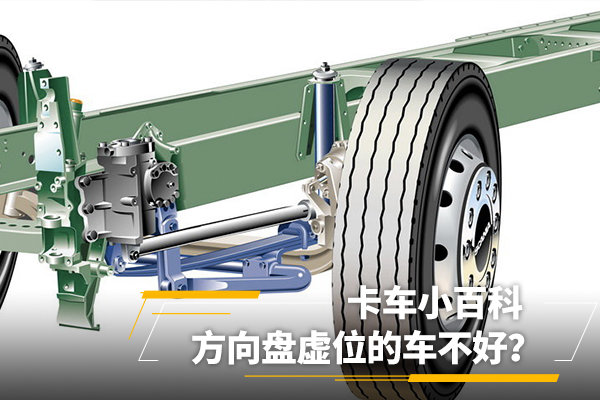

Truck Encyclopedia (37): Is it bad to have a car with a vacant steering wheel?
A few days ago, Xiaobo saw a group of card friends discussing the topic of the steering wheel (empty space). One of the cardholders said that the steering wheel of domestic cars is large, while the direction of imported cars is small. In turn, it means that the workmanship of domestic cars is poor, the parts are large and there are many vacancies.
There are many parts involved in the direction of the open space, today's truck encyclopedia will briefly talk about it, what is the open space of the steering wheel?
● Let's talk about the definition first
The technical term for steering wheel openness is called the maximum free rotation of the steering wheel, also known as the free travel of the steering wheel. In the vernacular, it means that the direction is not false, whether it refers to where to fight.

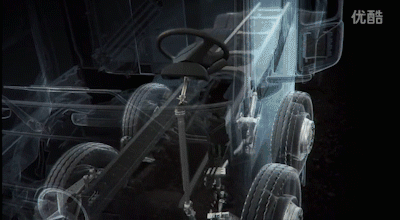

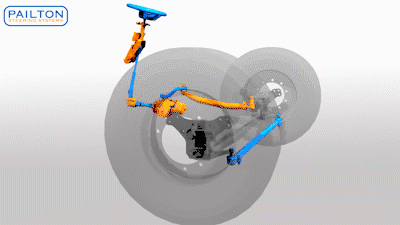

The directional control system of the truck is a set of more complex mechanical linkage structure, which does not involve the steering assist system, which is composed of steering wheel, steering shaft, steering gear, steering rod, steering knuckle arm, etc.
After so many mechanical connecting rod structures, there will inevitably be a certain mating gap, which is what we call the steering wheel (steering wheel) free travel.
● Fast or steady, is free travel on the steering wheel a good or bad thing?
This cannot be generalized, the following truck encyclopedia from two aspects to explain, after reading it, you will know whether it is good or bad.
The steering wheel has a certain amount of free travel, which has the following advantages:
When the road is uneven, it can avoid the influence of the direction caused by the driver's shaking; When the vehicle is driving at high speed, it can reduce the large directional deviation and reduce the fatigue of the driver.
In addition, the free travel of the steering wheel can also filter out some of the vibrations and avoid transmitting them to the steering wheel, increasing the comfort of the vehicle.
But if the steering wheel has too much free travel, it can also be bad:
When the vehicle is driving on a road with complex road conditions, it needs to adjust the direction frequently, which increases the driver's work intensity and makes personnel easy to fatigue.
slower emergency lane change response; it is more laborious and time-consuming for vehicles to turn around and move warehouses; When the vehicle is driving at high speed, excessive free travel will also make the driver need to constantly adjust the direction, and the personnel will be more tired.
● There is an upper limit to the vacancy, too large is not possible
our country has introduced national mandatory regulations for the free travel of the steering wheel. According to the provisions of Chapter 6.4 of the national standard "GB7258-2017 Technical Conditions for the Safety of Motor Vehicle Operation", the requirements for the maximum free rotation of the motor vehicle steering wheel are as follows:
1. Motor vehicles with a maximum design speed greater than or equal to 100km/h: 15°
2. Three-wheeled vehicle: 35°
3. Other motor vehicles: 25°
Article 1 of Chapter 6.4 of GB7258-2017 Technical Conditions for Motor Vehicle Operation Safety clearly stipulates that as long as it is a motor vehicle with a design speed greater than or equal to 100km/h, the maximum free travel shall not exceed 15 degrees.
Although the speed limit of our medium and heavy trucks is less than 100km/h, the design speed exceeds 100km/h, so as long as the steering wheel automatically rotates more than 15 degrees, it does not meet the national standard.
● Editor's postscript
As "putting aside the dose and talking about toxicity, they are all hooligans", everything has a degree. The free travel of the steering wheel should be within a reasonable range, and it is not a good thing to be too big or too small.
